Power Supply Installation and Selection Guide

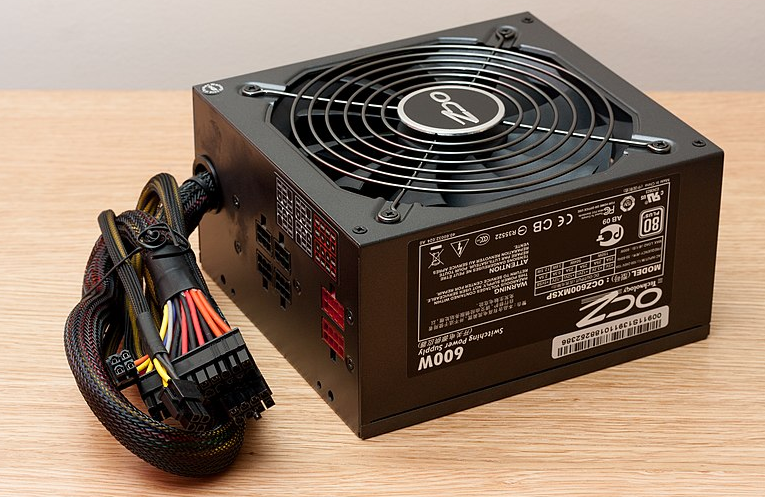

The power supply unit (PSU) is a critical component that converts AC power from the wall outlet into stable DC power that your computer components can use. Selecting and installing the right power supply ensures system stability, efficiency, and longevity. This guide covers power supply types, specifications, and installation considerations.

Power Input and Voltage Requirements

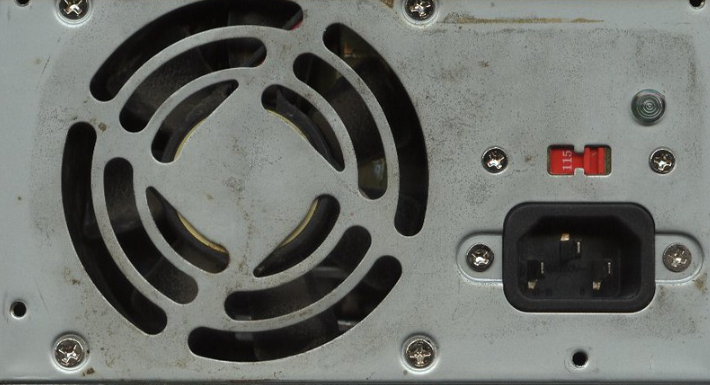

Figure 1: Power Supply Voltage Switch and Input Socket – Note the voltage selector switch (red) present on some PSUs
Region Voltage Range Frequency Considerations
North America 110-120 VAC 60 Hz Standard household outlet
Europe/Asia 220-240 VAC 50 Hz Higher voltage, different plug

DC Output Specifications

Power supplies distribute DC power through different voltage rails, each serving specific components in your system. Modern power supplies primarily rely on the 12V rail for most power-hungry components like CPUs and GPUs, while the 3.3V and 5V rails support lower-power components and legacy devices. The term “rail” refers to these independent power pathways, with each providing consistent voltage levels to ensure stable operation. Multiple 12V rails may be present in high-end power supplies to distribute load more effectively and provide better stability for power-intensive components.

Rail Typical Use Common Components
3.3V Logic circuits RAM, PCIe cards
5V Legacy components SATA drives, USB
12V High-power devices CPU, GPU, Fans

Power Supply Types

  • Standard PSU
    • Fixed cables
    • Lower cost
    • More cable clutter
  • Modular PSU
    • Detachable cables
    • Better cable management
    • Higher initial cost
  • Redundant PSU
    • Multiple power supplies
    • Used in servers
    • Failover capability

Power Supply Connectors

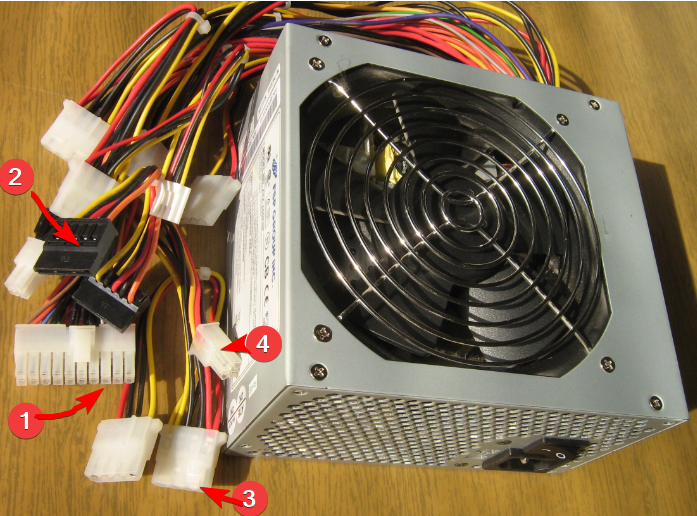

Figure 4: Common PSU Connectors including 1)Motherboard, 2)SATA, 3)Molex, and 4)4-Pin Adapter for motherboards with 24 pins
  • Motherboard Power

    Modern motherboards use a 24-pin connector, while older boards use 20-pin. Adapters are available for compatibility.

  • CPU Power

    4-pin or 8-pin connector providing dedicated power to the processor.

  • Peripheral Power

    SATA, Molex, and PCIe connectors for various components.

Wattage Considerations

Power supply wattage should exceed your system’s requirements by 20-30% to ensure stability and allow for future upgrades. Consider these factors when calculating needed wattage:

  • CPU TDP (Thermal Design Power)
  • GPU power requirements
  • Number of storage devices
  • Fan and RGB configurations
  • Future upgrade plans

Note: Online PSU calculators can help determine the appropriate wattage for your specific configuration.
